Model ES-M ELECTRO CHUCK MASTER*
Application
Rectifies an input from an AC power source to DC and outputs it to the electromagnetic chuck. To eliminate the residual holding power of the electromagnetic chuck, the rapid automatic demagnetization function is activated.
Features
- An interlock circuit is incorporated.
- Demagnetization is completed quickly by simply pressing the switch. The program has been designed to give a consistent demagnetizing effect within a short time.
- Model ES-M305C can be used on both input voltages of 100 VAC and 200 VAC.
- The noise resistance feature ensures consistent performance in certain noisy environment.
- The DC output voltage is constant.
- The fundamental functions required to control electromagnetic chucks are incorporated.
- The number of incorporated circuit boards has been reduced from 2 to 1 to improve the support environment.
Precaution for use:
Model ES-M103C is a low-cost, readily available type and therefore lacks some functions described above.
Model ES-M103C is a low-cost, readily available type and therefore lacks some functions described above.
Specifications
| Model | Power Source | Output | |
|---|---|---|---|
| Voltage | Current | ||
| ES-M103C | Single-phase 100 VAC 50/60 Hz | 90 VDC | 3A |
| ES-M305C | Single-phase 100/200 VAC 50/60 Hz | 90 VDC | 5A |

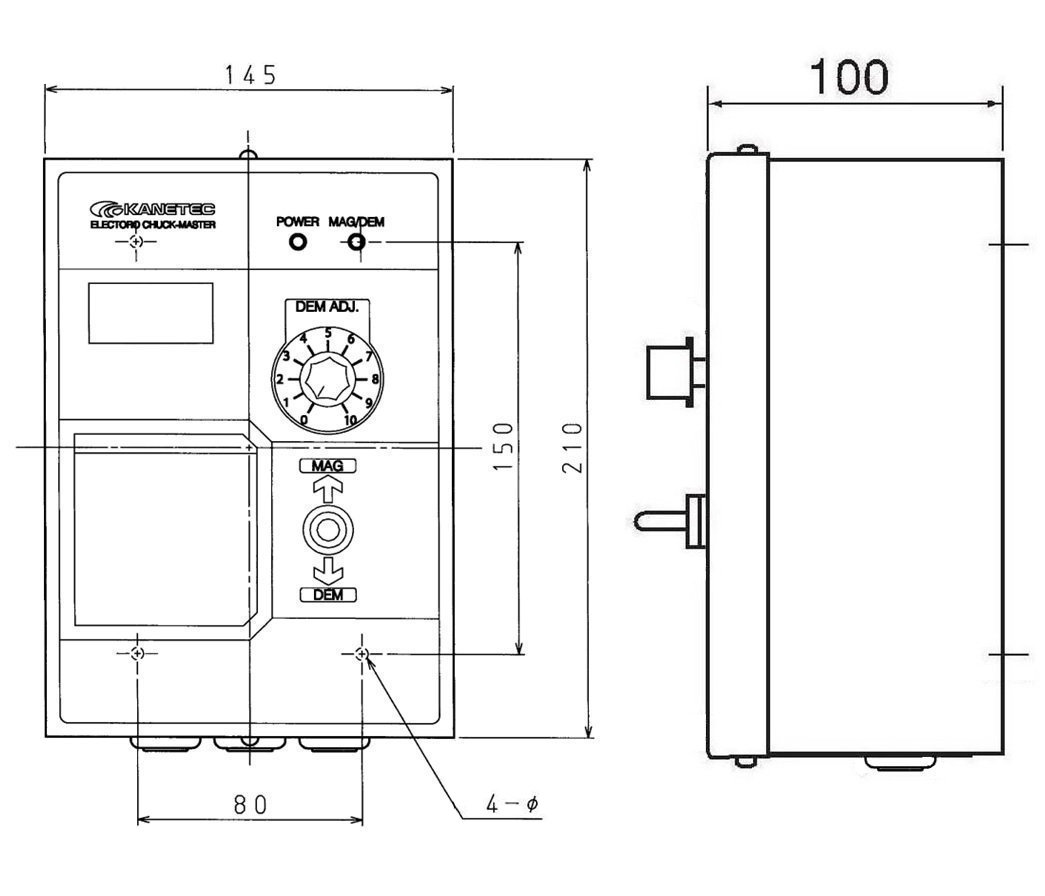

| Dimensions (mm) | Mounting Hole Pitch | Mounting Hole | Mass | ||
|---|---|---|---|---|---|
| Width | Height | Depth | |||
| 145 (5.70) | 210 (8.26) | 100 (3.93) | – | – | 2.3kg / 5.1lb |
| 145 (5.70) | 210 (8.26) | 100 (3.93) | φ4 – φ4.5 (±0.17) | – | 2.5kg / 5.5lb |
*1: Switch selection *2: If the magnetic force needs to be adjusted, select Model EH.
